From Rust to Redemption
Chris Corona’s 1966 Nova SS
BY NICK LICATA IMAGES BY PATRICK LAUDER
S

ometimes the best project cars start with a carefully planned search. Other times, they begin with a leap of faith that fails to stick the landing.

For Chris Corona, it was a little of both.

Long before the striking supercharged 1966 Nova SS sitting before you existed, Chris was just another teenager who wanted a muscle car but lacked the budget to buy one. Roughly 30 years ago he scraped together $250 and dragged home a tired 1968 El Camino. Calling it “rough” would be generous, but to Chris it was an education that started outside the classroom.

“I couldn’t afford a cool muscle car back in my high school days, so I had to settle for the Elco,” Chris says. “It was way before YouTube, so I had to learn everything by trial and error. My dad helped when I got stuck, and I’d ask friends questions whenever I could. I made plenty of mistakes, but that’s how I learned.”

Those hard-earned lessons eventually turned into experience. Chris, now an established electrician from Gilroy, California, graduated to a 1968 Camaro before life temporarily interrupted the hot rod hobby. The Camaro eventually found a new owner, but the itch to build another muscle car never disappeared.

This time, Chris wanted to do something he’d dreamed about for years. “I always wanted to build a supercharged car,” he explains, “and I really liked the small stature of the second-gen Novas.”

His search led him to what appeared to be the perfect candidate. Listed on eBay and living in New Jersey was a black vinyl-top Nova that looked solid in the photos and sounded even better in the seller’s description. Confident he’d found the right starting point, Chris bought a car sight unseen and waited for the transporter to arrive.

Then reality rolled off the trailer.

“After we unloaded it, I fired it up and took it for a drive,” Chris recalls. “What was supposed to be fun turned into one of the worst driving experiences I’ve ever had. The brake pedal went straight to the floor, and I barely got the car stopped. Not long after, the wheezy small-block overheated.”

Upon further inspection, Chris noticed some bubbling under the black vinyl top, which, of course, is never good. Pulling off the top, Chris discovered a massive amount of rust and rot. That unveiling was a promise of more to come. “The car was nothing close to what was listed by the owner, but I took the risk and was rewarded with a major disappointment, shoddy bodywork, lots of Bondo, and a poorly running car,” Chris confesses.

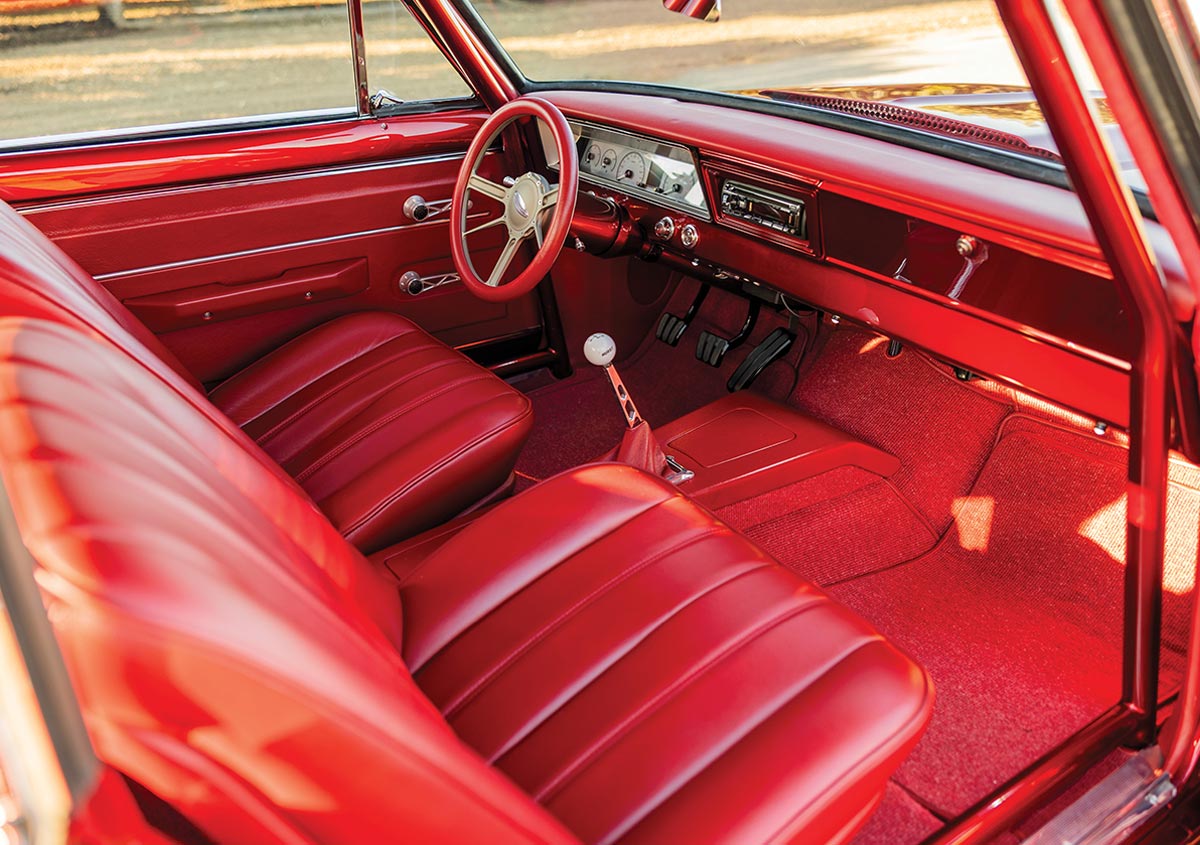

Custom red leather interior with bucket seats and center console.
Hurst shifter with a white ball knob and chrome handle.

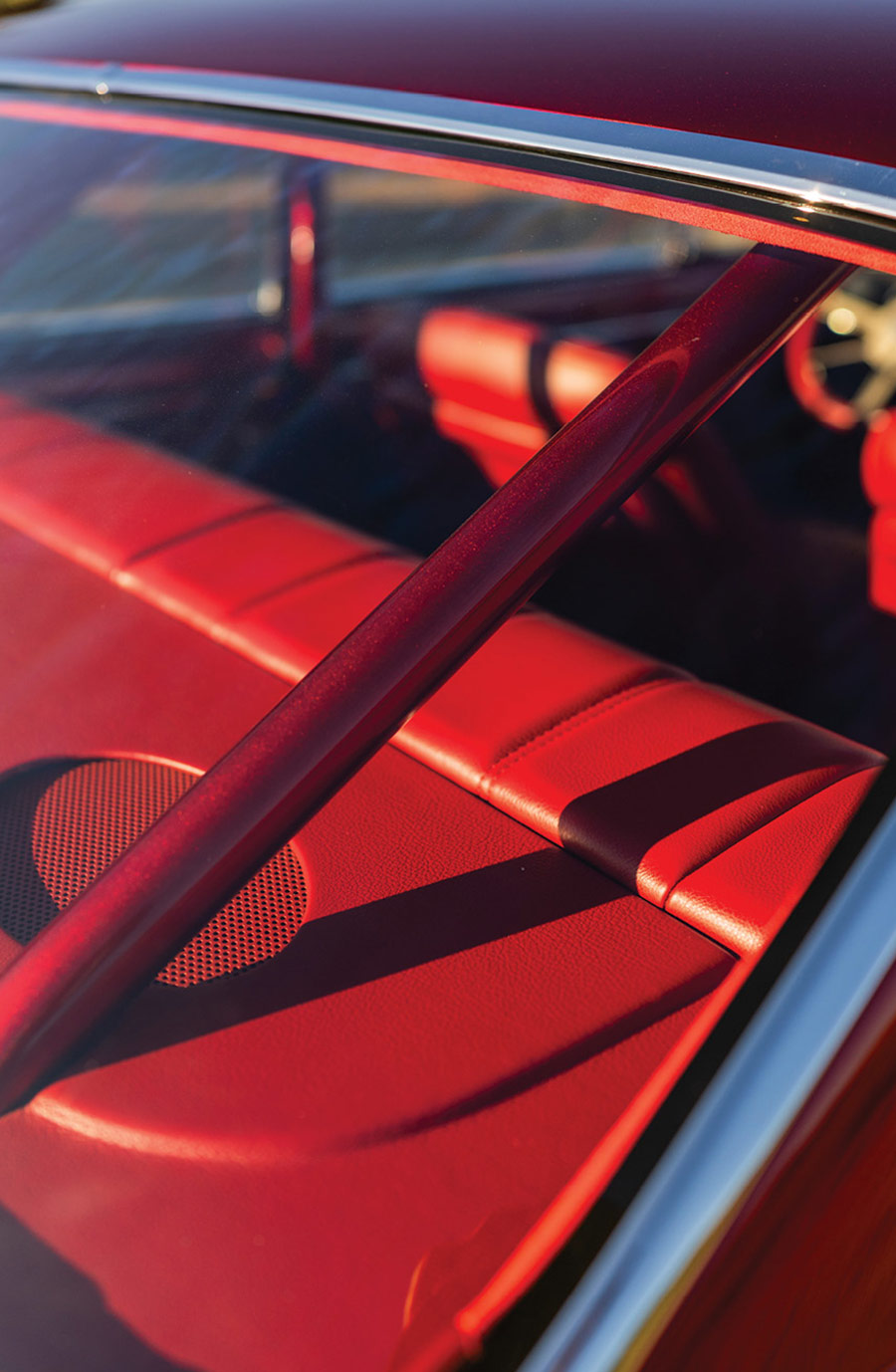

Rear window view of the roll cage and red upholstery.

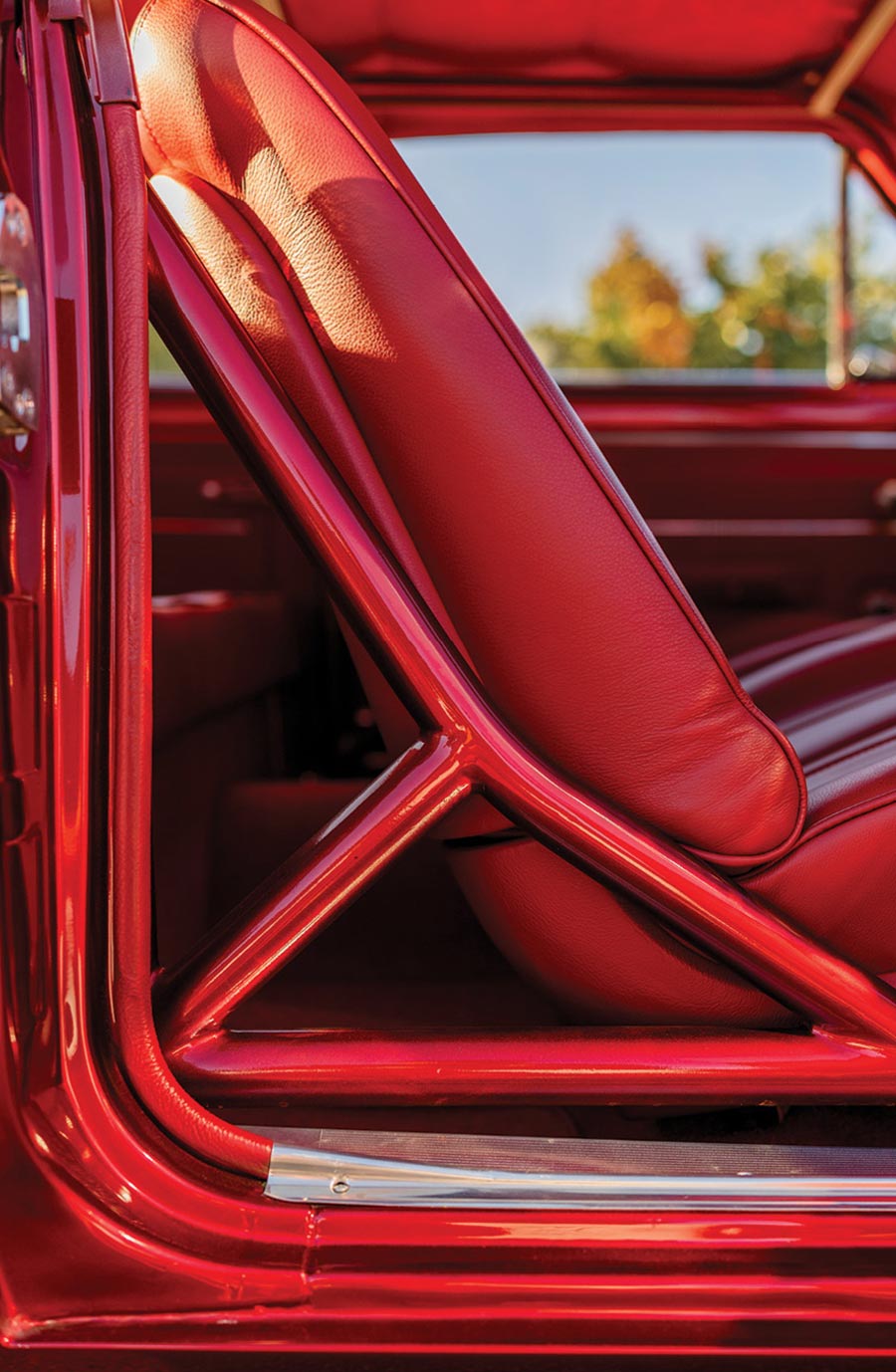

Integrated red roll bar reinforcement near the driver's seat.

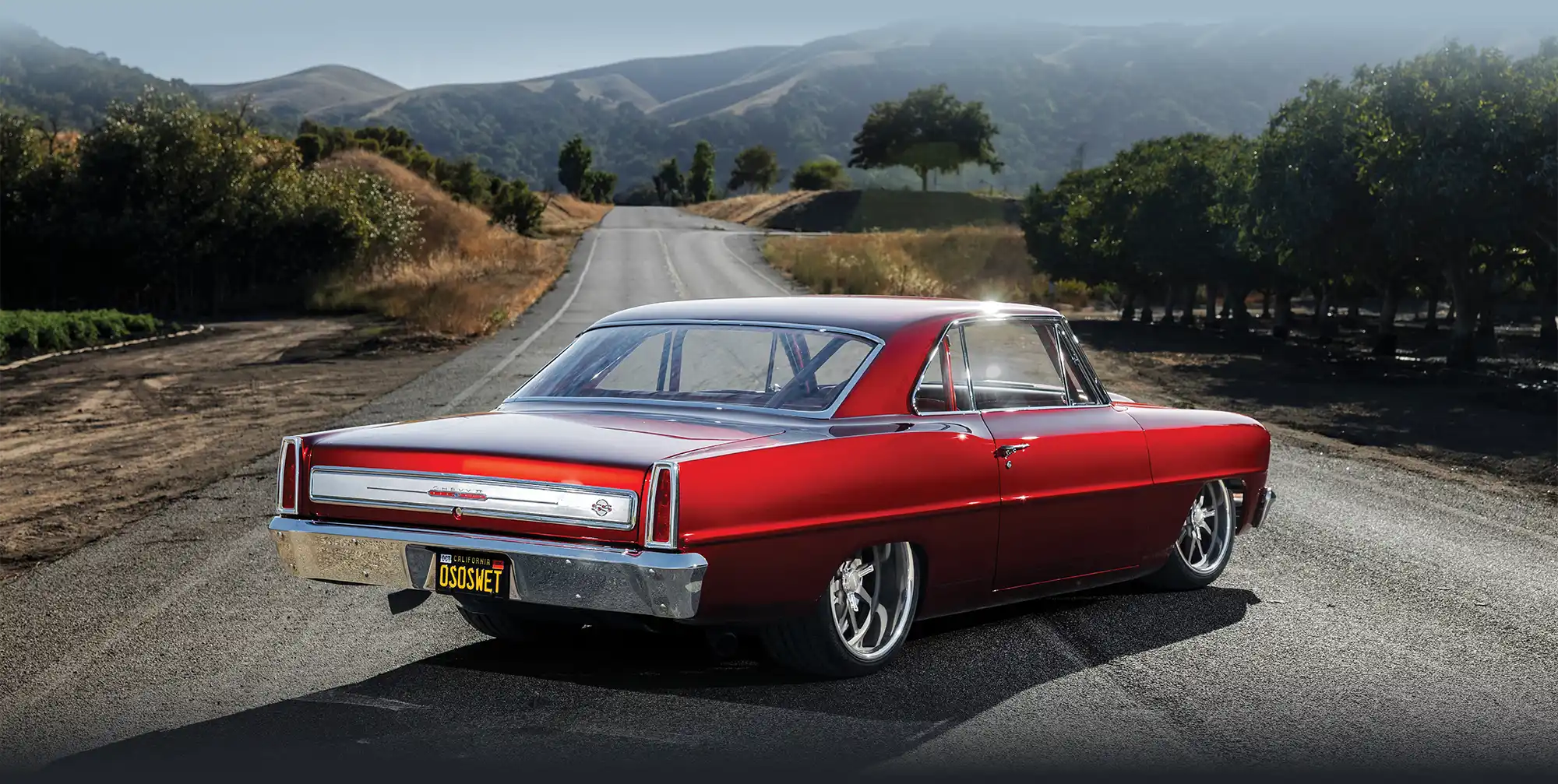

Rear view of a red 1966 Nova SS on a road.

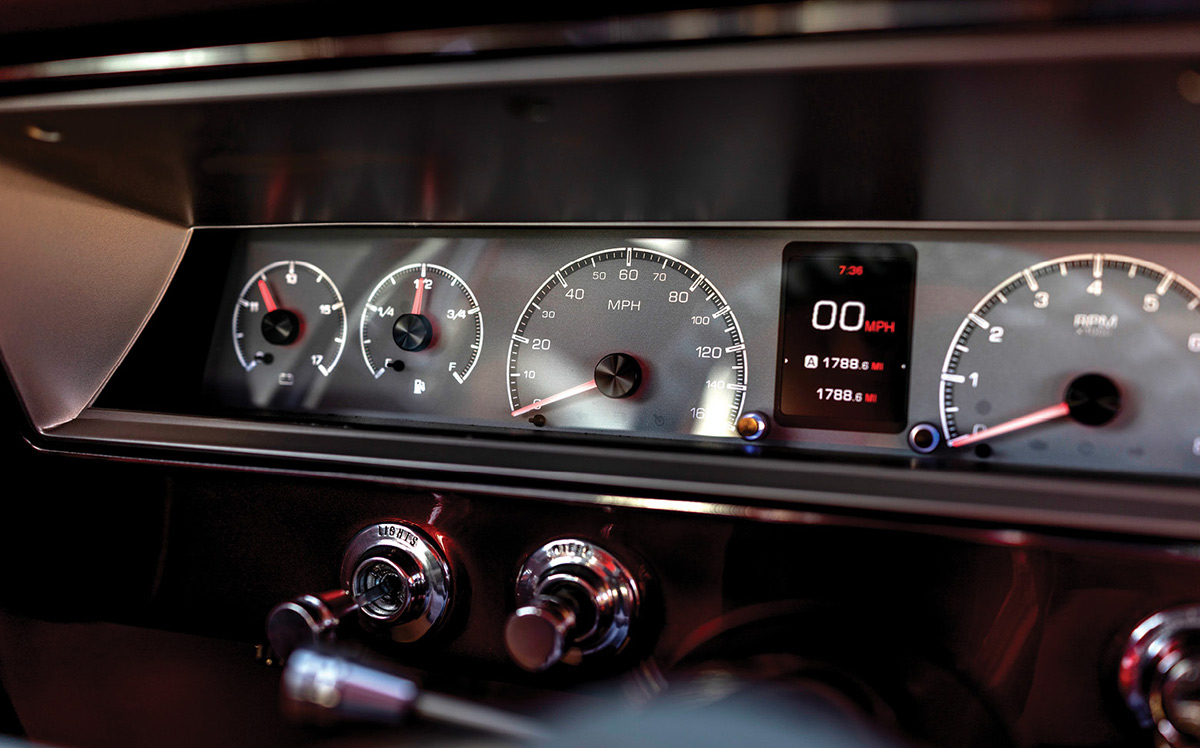

Close-up of digital gauges with red backlighting.
Many people would cut their losses—Chris grabbed a cutoff wheel.

By the time the dust settled, only the hood, roof, and trunk lid were worth saving. Everything else required replacement or major surgery. With the help of his friend, Rich Muraoka, and occasionally, his wife, they began a 2-year journey working weekends and weeknights sharing lots of stories, a good amount of frustration, and a ton of accomplishment.

A local body shop handled some of the heavy lifting on the metalwork, but Chris and Muraoka invested countless hours fitting replacement panels, perfecting body gaps, and straightening decades of neglect. Hollister Power Sport Custom Paint and Body finished the exterior with a custom Randy Apple Red mixed by Paint House and applied by Greg Gonzales and Nick Boffa. The team also filled the factory body seams, smoothed the cowl vents, and every piece of trim rechromed, creating a cleaner, more contemporary appearance without sacrificing the Nova’s unmistakable identity.

Chris centered the build around a 2023 LQ9 6.0L iron-block engine. The bottom end retains the factory cast crankshaft, powdered-metal connecting rods, and hypereutectic pistons, while Gilroy Automotive Machine handled the machine work and assembly. A Chevy LSX B15 camshaft and LS3 cylinder heads provide the airflow, but the real attention-getter is the Whipple 2.9L supercharger sitting proudly on top.

Producing 10 pounds of boost and managed by a Holley Terminator EFI system, the combination churns out 784 hp at the tires. Stainless Works headers route into a full 3-inch stainless exhaust before exiting through Black Widow Angry Housewife mufflers. The sound leaves little doubt the Nova means business.

Supporting the blown LS is a Wegner Automotive accessory drive system and Wegner valve covers providing a clean appearance beneath the hood, complemented by Billet Specialties hood hinges.

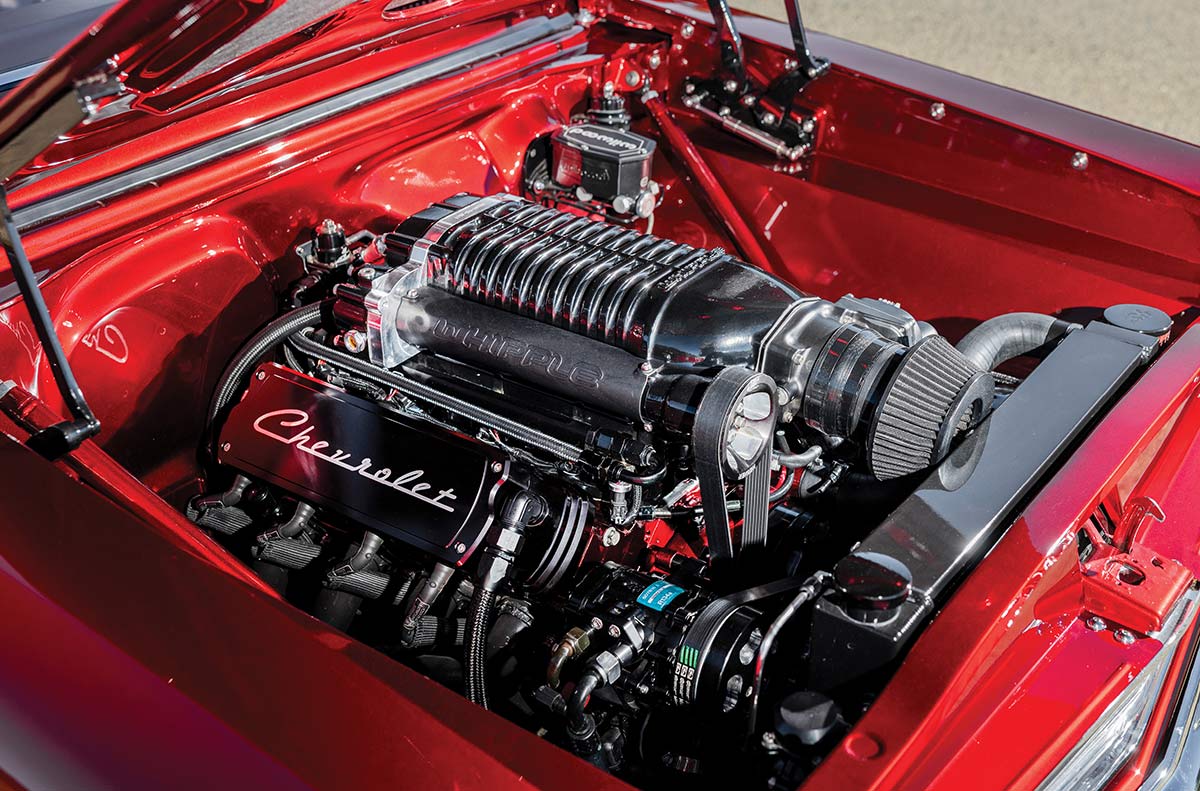

Engine bay featuring a black Whipple supercharger on an LS.

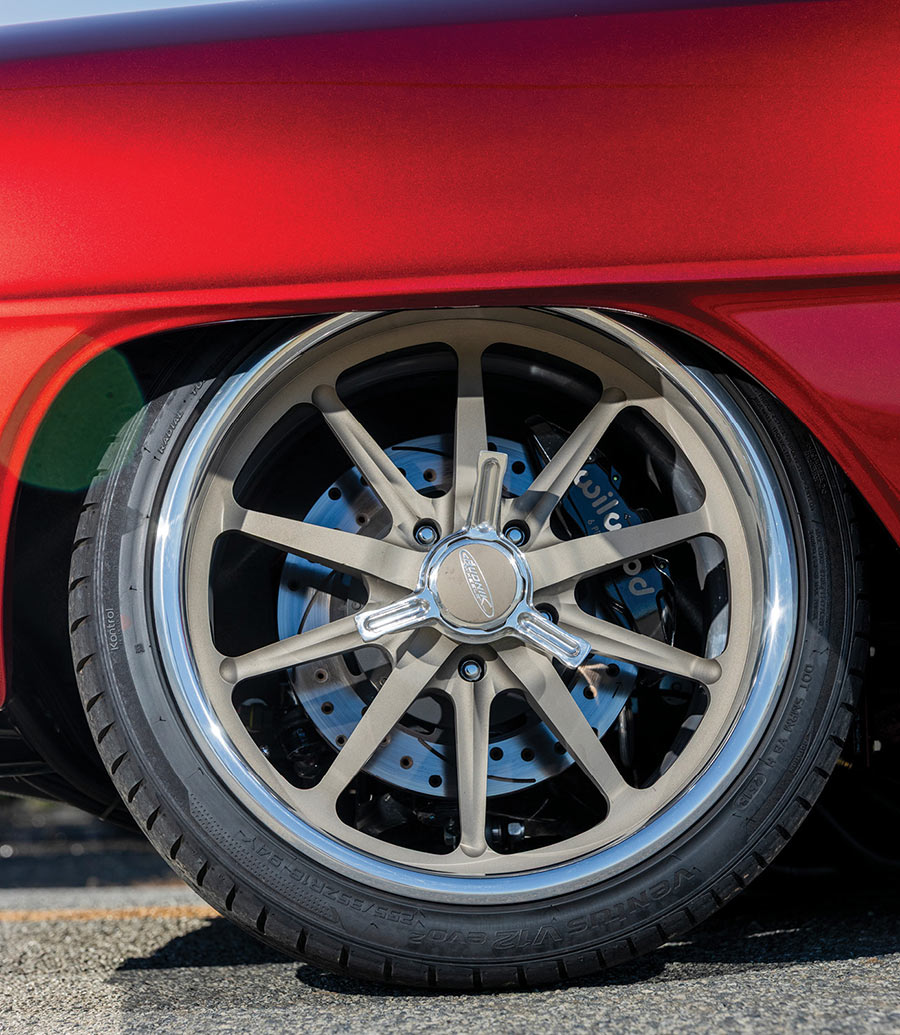

Budnik G-Series wheel and Wilwood multi-piston brake caliper.

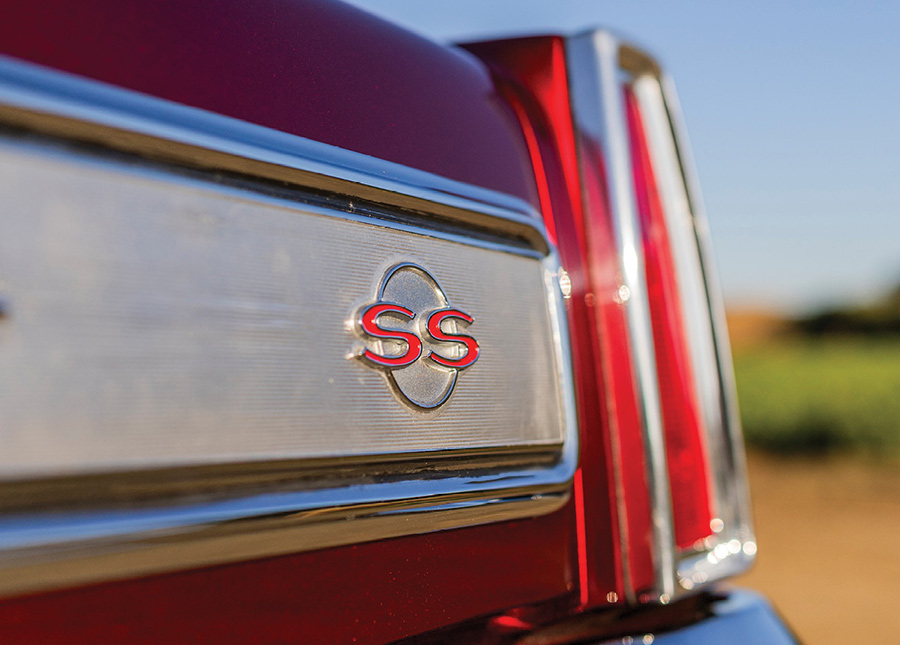

Detailed close-up of the chrome SS trunk emblem.
A TREMEC T56, prepared by Dederichs Motorsports, puts Chris firmly in control while a McLeod twin-disc clutch and Strange driveshaft transfer power to a Detroit Speed 9-inch housing equipped with 3.73 gears, Eaton Truetrac differential, and Strange 30-spline axles.

From there, Chris completely upgraded the Nova’s chassis. A TCI Pro Touring front subframe with tubular control arms works alongside the Ridetech ShockWave air suspension, while the rear utilizes Detroit Speed’s QUADRALink suspension system with matching Ridetech components. AccuAir management with dual ViAir compressors allows Chris to dial in ride height without compromising handling.

Massive Wilwood brakes feature 13-inch front rotors with six-piston calipers and 12-inch rear rotors and four-piston calipers providing the stopping power necessary for a car capable of generating serious acceleration.

Budnik G-Series Gasser wheels, 18×8 up front and 20×10 out back, wrapped in Hankook Ventus V12 rubber complete the aggressive stance.

Inside, is a careful balance between classic styling and modern comfort. While recognizing the limitations of the Nova’s unibody construction, Chris designed and fabricated a custom rollcage integrated into the subframe connectors. The added reinforcement significantly stiffens the chassis, improving handling and stability while providing an extra measure of safety for a streetcar capable of putting 784 rear-wheel horsepower to the pavement.

Minaglia’s Auto Upholstery wrapped the factory seats, custom door panels, and dash in rich Burgandy Wine leather over German loop carpet. Dakota Digital instrumentation and Ididit steering column, Restomod Air climate control, and an impressive Alpine, JL Audio, and Focal sound system make long drives every bit as enjoyable as short blasts through the gears.

One of Chris’ favorite memories came during a 450-mile road trip to The Classic at Pismo Beach, California. His wife drove the 1963 Nova wagon Chris had previously built for her while he piloted the freshly completed ’66.

“Seeing people hanging out their windows giving us thumbs up all the way there was incredible,” Chris says. “People are always surprised that we actually drive these cars.”

For Chris, that’s the point.

“I was confident I could take this car that was in shambles and turn it into a running, driving car,” he reflects. “I have to admit it was a lot more work than I expected, but it came out way better than I ever imagined. Thanks to my wife and best bud, Rich, we pushed hard, stayed on track, and never gave up no matter how difficult it got.”

Looking over the Nova today, it’s hard to imagine it was once host to rust, rot, and major disappointment. Maybe that’s what makes the finished product so rewarding. Sometimes the best builds aren’t the ones that start with the best cars. They’re the ones rescued through determination, shared effort, and unwillingness to let a bad purchase become the final chapter.

Chris Corona simply wrote a much better ending.

TECH
OWNER: Chris Corona, Gilroy, California
VEHICLE: 1966 Nova SS
Engine

TYPE: 2023 LQ9
DISPLACEMENT: 6.0L (364 ci)
COMPRESSION RATIO: 10.3:1
BORE: 4.0 inches
STROKE: 3.622 inches
BUILDER AND MACHINE WORK: Gilroy Automotive Machine
ROTATING ASSEMBLY: Cast-iron crankshaft, powdered I-beam rods, Hypereutectic cast aluminum pistons
CAMSHAFT: Chevy LSX B15
CYLINDER HEADS: LS3
INDUCTION: Whipple 2.9L supercharger (10 pounds boost)
FUEL INJECTION: Holley Terminator
EXHAUST: Stainless Works 2-inch headers, 3-inch stainless exhaust, Black Widow Angry Housewife mufflers
VALVE COVERS: Wegner Automotive
ACCESSORY DRIVE: Wegner Automotive
ANCILLARIES: Billet Specialties hood hinges, Entropy aluminum radiator, Rick’s Tanks fuel tank with dual Walbro fuel pumps
OUTPUT: 784 rwhp

Drivetrain

TRANSMISSION: TREMEC T56 by Dederichs Motorsports (Fort Worth, TX)
CLUTCH: McLeod twin disc
DRIVESHAFT: Strange 3-inch
REAR AXLE: Detroit Speed Ford 9-inch, 3.73 gears, Eaton Truetrac, Strange 30-spline axles

Chassis

FRONT SUSPENSION: TCI Pro Touring subframe, TCI control arms, Ridetech ShockWaves
REAR SUSPENSION: Detroit Speed QUADRALink, Ridetech air-ride, ShockWave shocks

BRAKES: Wilwood 13-inch rotors, six-piston calipers front, 12-inch rotors, four-piston calipers rear, Wilwood master cylinder
AIR SYSTEM: AccuAir air-ride four-wheel control with dual ViAir 485 compressors
Wheels & Tires

WHEELS: Budnik G-Series Gasser, 18×8 front, 20×10 rear
TIRES: Hankook Ventus V12 255/35R18 front, 315/30R20 rear

Interior

UPHOLSTERY: Burgandy Wine leather
INSTALLATION: Minaglia’s Auto Upholstery (Healdsburg, CA)
CARPET: German loop Wine
DOOR PANELS: Custom-wrapped leather
INSULATION: Kilmat
SEATS: Factory wrapped in leather
ROLLBAR: Custom by owner
STEERING: Ididit column, Budnik steering wheel
SHIFTER: Billet Specialties
DASH: Custom wrapped
INSTRUMENTATION: Dakota Digital
WIRING: American Autowire by owner
HVAC: Restomod Air
CONTROL PANEL: Restomod Air
ENTERTAINMENT SYSTEM: Alpine head unit, JL Audio amps and 12-inch sub, and Focal speakers
INSTALLATION: Top Notch Tunes (Morgan Hill, CA)

Exterior

BODYWORK AND PAINT: Hollister Power Sport Custom Paint and Body (Hollister, CA)
PAINTERS: Greg Gonzales and Nick Boffa
PAINT: Paint House custom mix Randy Apple
HOOD: Steel 2-inch cowl
GRILLE: Stock
BUMPERS: Stock
HEADLIGHTS: Dapper Lighting
TAILLIGHTS: Fesler
BODY MODS: Factory seams filled, cowl vents smoothed, all trim rechromed
